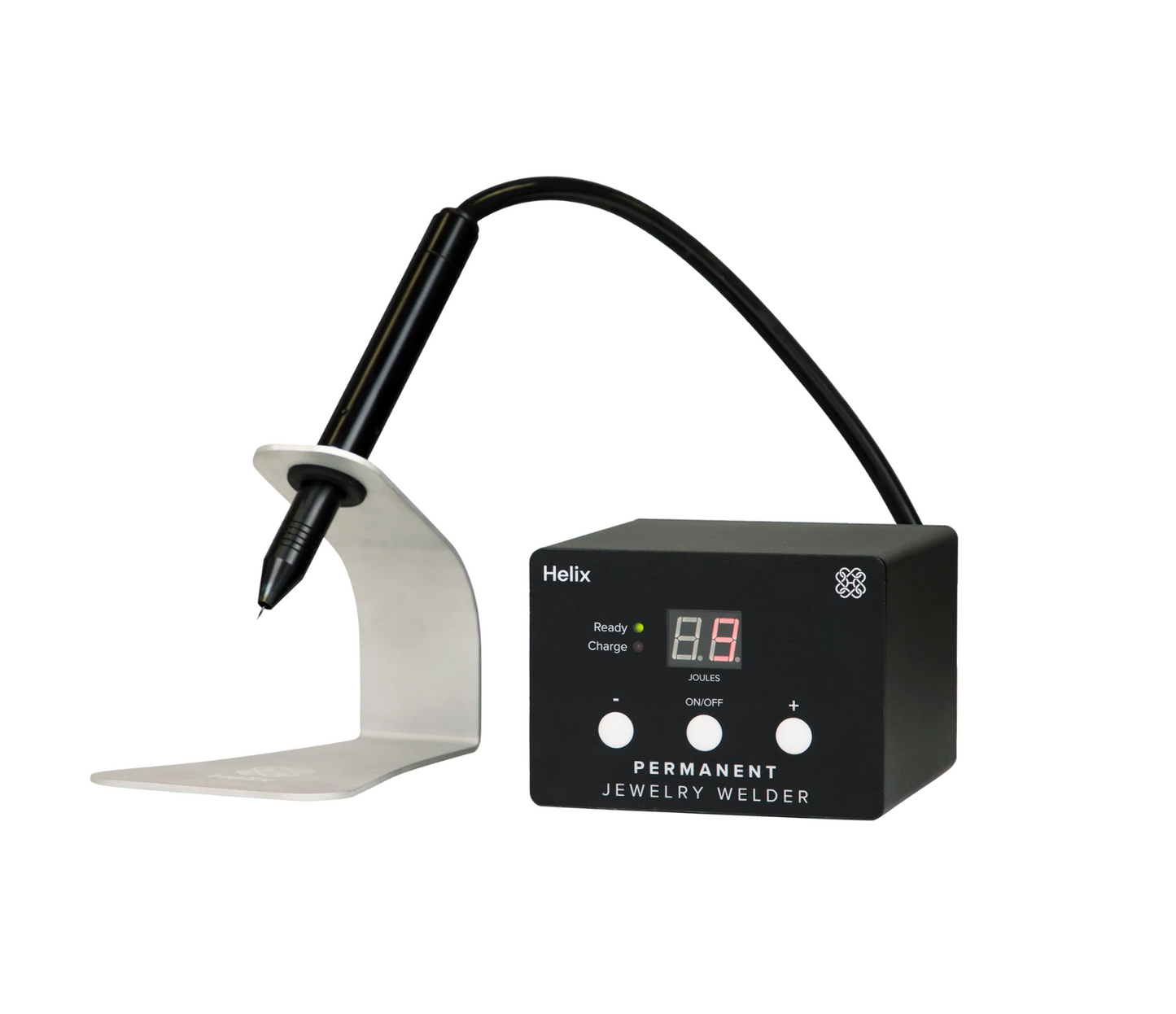

Helix Permanent Jewellery Welder

Introducing the Helix Permanent Jewellery Welder—your ultimate solution for professional welding in the jewellery trade. This powerful, compact tool is designed not just for permanent jewellery artists, but also for all jewellers and metal artisans, providing unmatched reliability and ease of use for a variety of applications.

Key Features:

• Professional-Grade Performance: Built to withstand rigorous, high-volume use, the Helix is field-tested for reliability, offering precise, seamless welds.
• Compact & Portable Design: Small enough for travel and efficient storage, ideal for workspaces of any size and for on-the-go use at trade shows and events.
• Versatile Applications: Whether you’re closing jump rings, repairing chain links, or tacking components, the Helix is ready to meet your jewellery needs.

Welding Precision & Control:

• Digital Readout for Power Calibration: Offers exact power adjustment from 1 to 30 joules, delivering precise results for both delicate and durable materials.
• User-Friendly Single-Button Interface: Simplifies operation and ensures control over settings, making it easy for both beginners and experienced jewellers.

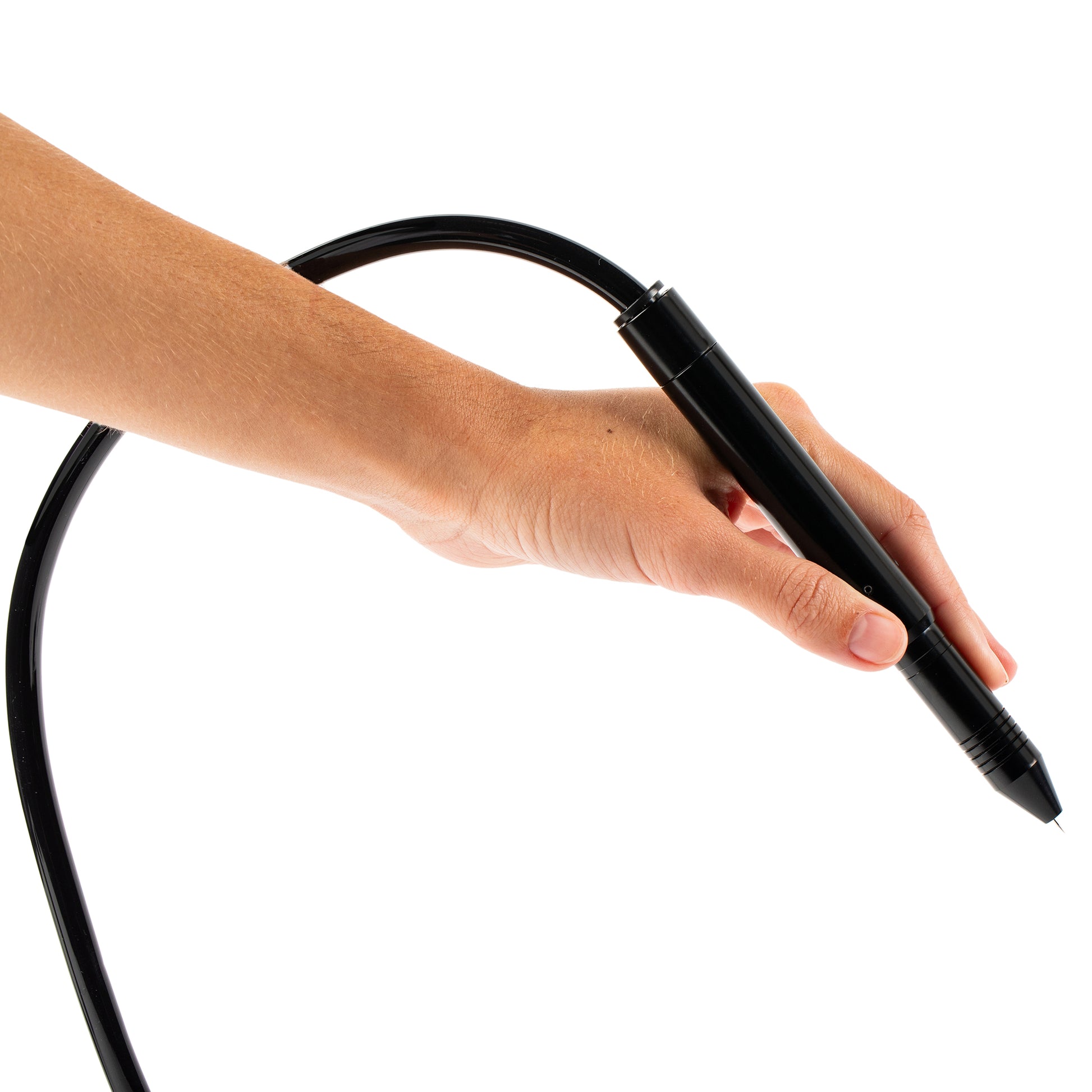

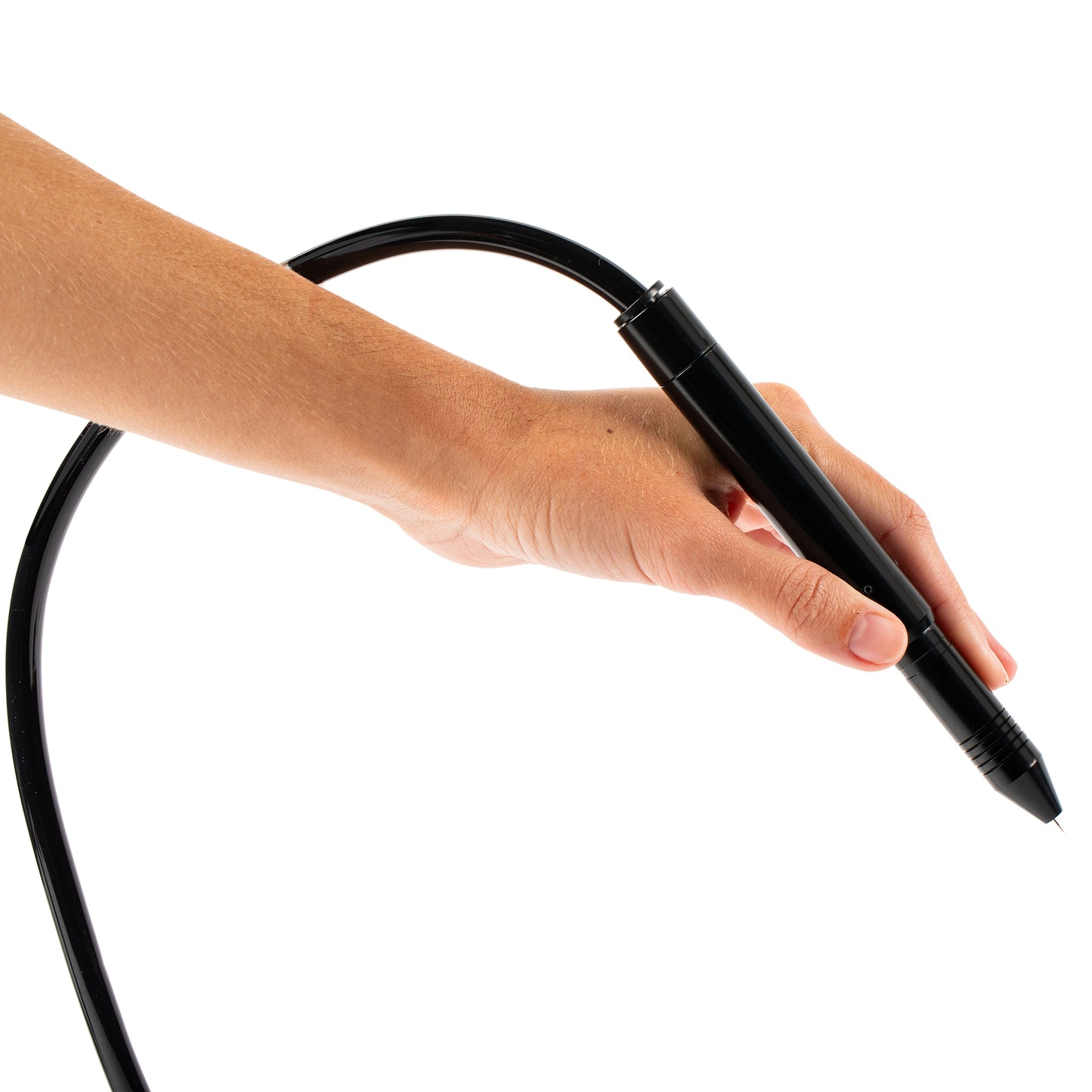

• Ergonomic Stylus: With a 1mm tungsten electrode housed in durable billet aluminium, the stylus is comfortable and precise.

Material Compatibility:

The Helix is engineered to weld a wide variety of materials:

• Gold-Filled
• All Karats of Gold
• Sterling Silver
• Stainless Steel
• Platinum
• Copper
• Brass
• Aluminium

Argon Gas Flow System:

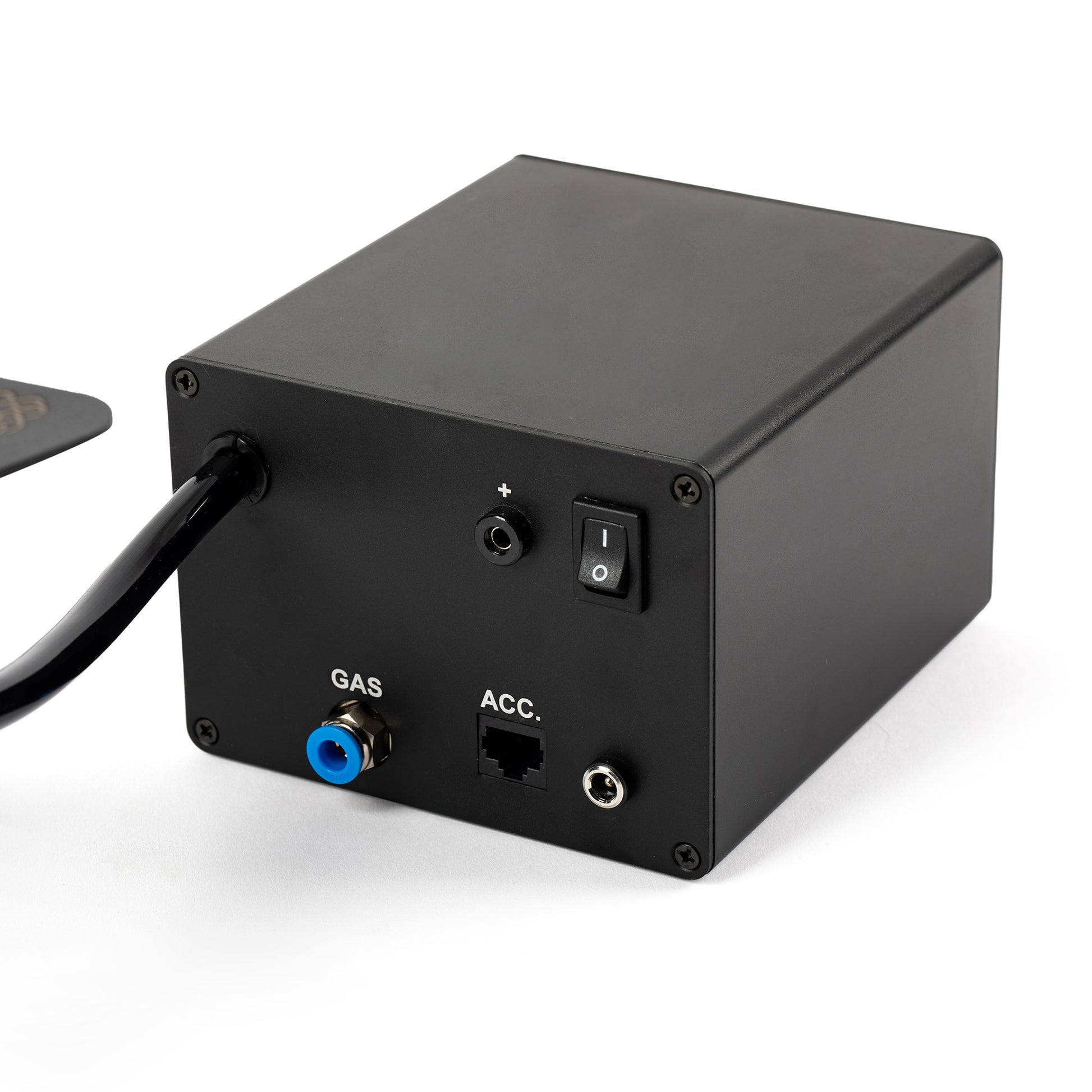

The Helix’s on-demand argon flow feature improves weld quality by reducing oxidation without unnecessary argon waste. The system only releases argon as needed, maximising efficiency. Argon gas isn’t essential, but it’s recommended for those seeking optimal weld conditions. While we don’t supply argon, numerous specialist companies in the UK can provide it. The welder comes with the necessary tubing to connect to the regulator. You’ll need to obtain a tank and a regulator that has a 1/4 inch BSP thread and a 1/8 inch hose tail. If you need assistance or advice on setting up your system, please don’t hesitate to reach out to us.

Comprehensive 3-Year Warranty:

Backed by a 3-year warranty with no additional fees or subscriptions, the Helix offers reliable customer support and technical assistance seven days a week. Our warranty covers 1,000,000 welds under a 3 year warranty.

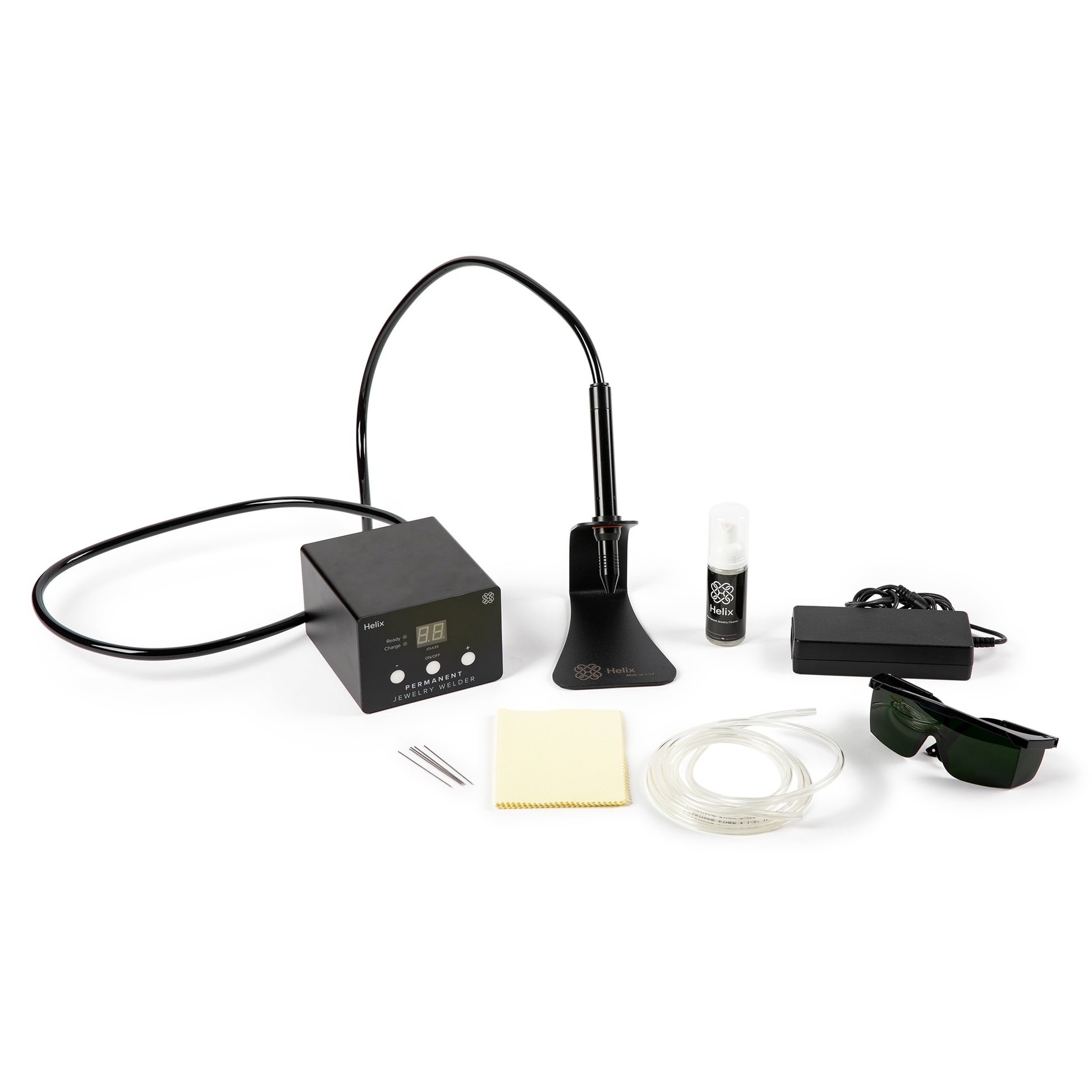

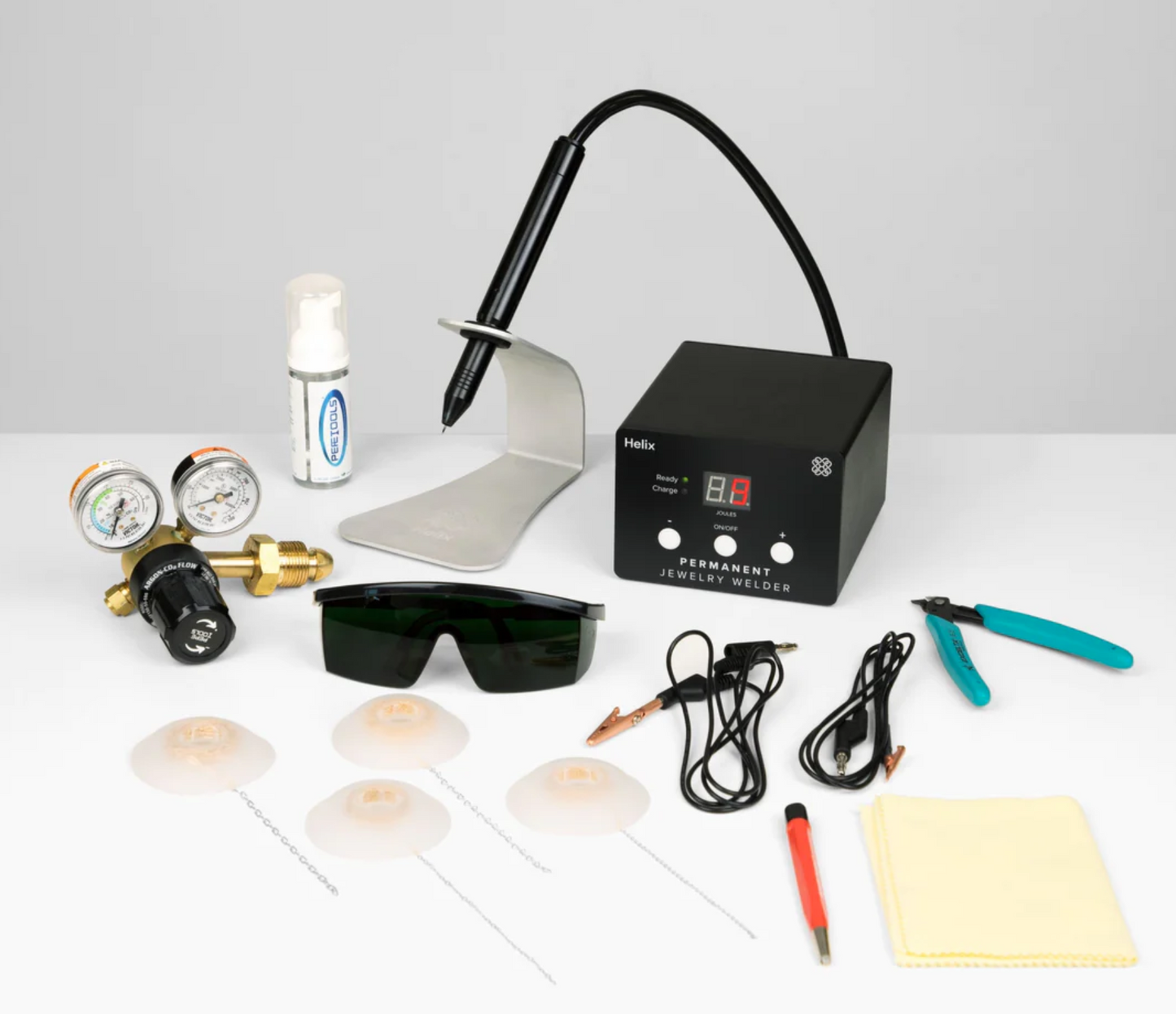

Included in the Helix Starter Kit:

• Helix PJW™ Micro-Welder
• Stylus Stand (12-gauge, powder-coated steel)
• Red Scratch Brush
• Protective Shade 5 Glasses
• Five 1mm Electrodes
• Argon Tubing (1/4" outer diameter, 1/8" inner diameter)
• Alligator Grounding Clip and Flat Copper Grounding Clip
• Natural Foam Jewellery Cleaner
• PureShine Polishing Pads (2-pack)
• UK and European Plugs
• Quick Start Guide

System Specifications:

• Power Settings: 30 adjustable levels, from 1 to 30 joules
• Stylus Length: 1.8m (6ft) from machine body to electrode tip
• Capacitor: 3300uF for efficient, consistent performance
• Weld Speed: 1 weld per second
• Spot Size: 0.5mm - 1.5mm, depending on power setting
• Weight: 0.6kg
• Power Supply: 110/220V

Optional Accessories:

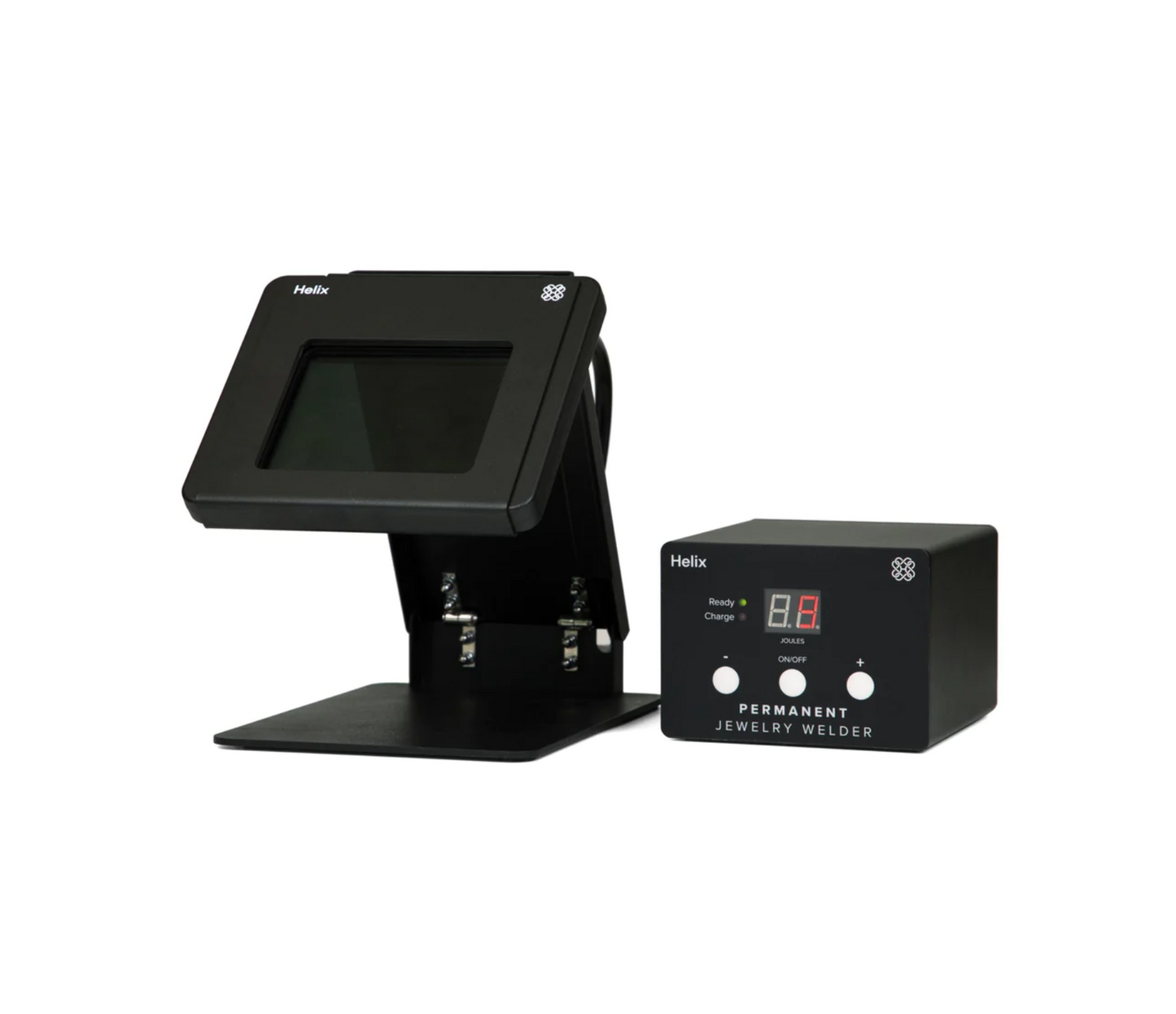

Consider pairing the Helix with the Auto-Darkening Screen with Magnification for enhanced visibility and eye protection, making every weld more efficient.

Invest in the Helix Permanent Jewellery Welder for precision, portability, and an industry-leading warranty—this is the ultimate professional tool for jewellers and artisans looking to create quality work with efficiency and confidence.

CLICK HERE FOR HELIX INSTRUCTION MANUAL
